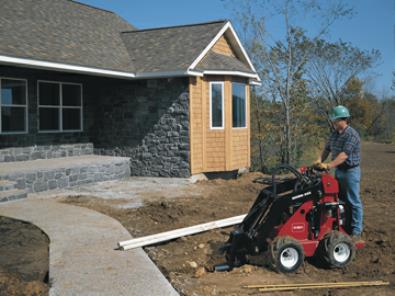

Toro Dingo TX 323 Features:
Engine Kohler Command Series 23 hp
Air Filter 2 stage, heavy duty, remote air cleaner
Cooling System Air Cooled
Fuel Tank 8 gallons
Oil Capacity 2 quarts
Hydraulic System
Pressure 3250 psi
Flow 4 gpm low flow hydraulic circuit, 10.8 gpm high flow hydraulic circuit
Reservoir Capacity 14.8
Toro Dingo 323 Specifications
Dimensions:
(A) Wheelbase 28"
(B) Ground Clearance 5.8"
(C) Overall Length 62" with bucket
Overall Width 40.5" with standard tires
35 " with narrow tires(D) Overall Height 48.7"
(E) Maximum Operating Height 91.2"
(F) Hinge Pin Height 66"
(G) Dump Height 34"
(H) Dump Angle 34 degrees
(I) Reach Max 28"
Ground Speed 4.5 mph forward and reverse
Tip Capacity 1030 lbs
SAE J818 Rating 50% Tip Capacity
with 200 lb Operator 515 lbs
Weight with Standard Bucket 1713 lbs
Weight with out Bucket 1567 lbs
CALL TO BUY OR FOR A DEMO 703 919 1379
use diagram above and match to the corresponding letter
