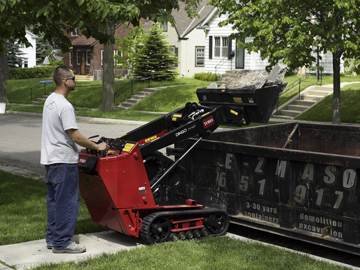

Toro Dingo TX 427 Narrow Track Features:
Engine Kohler Command Pro Series 27 horse power
Air Filter Two-Stage, heavy duty, remote
Cooling System Air Cooled
Fuel Tank 6 gallons
Oil Capacity 2 quarts
Hydraulic System
Pressure 3000 psi
Flow 11.4 gpm auxillary, 6 gpm loader arm, 16.9 gpm traction for each traction pump
Reservoir Capacity 10.5 gallons
Auxillary Horsepower 20 horsepower
Track
Standard Endless Kevlar reinforced rubber, 96.6" x 5.9", single internal tooth drive
Track Drive
Standard Sprocket drive, 10 road wheels per side, cast iron track guide
Traction Dual hydrostatic pump
Toro Dingo TX 427 Narrow Track Specifications:
Dimensions
Track Width 5.9"
(A) Wheelbase 31.2"
(B) Ground Clearance 4.6"
(C) Overall Length 92" with bucket
70.7" with out bucket
Overall Width 33.7"
(D) Overall Height 46.1"
(E) Maximum Operating Height 90.1"
(F) Hinge Pin Height 65.8"
(G) Dump Height 46.1"
(H) Dump Angle 38 degrees
(I) Reach 21.8" fully raised
Ground Speed 0-4.5 mph forward
0-2 mph reverse
Tip Capacity 1580 lbs
SAE J818 Rating 50% tip capacity 765 lbs
SAE J818 Rating 35% tip capacity 535 lbs
Weight with standard bucket 2006 lbs
Wieght with out standard bucket 1883 lbs
Ground Pressure 5.1 psi

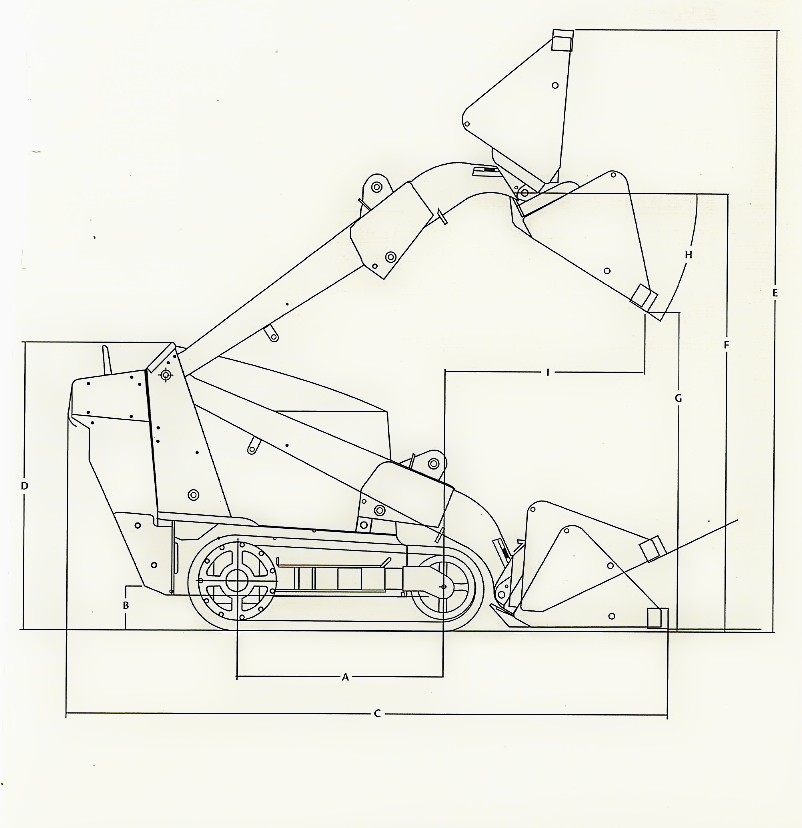

use diagram above and match to the corresponding letter
