Work Smarter…Not Harder

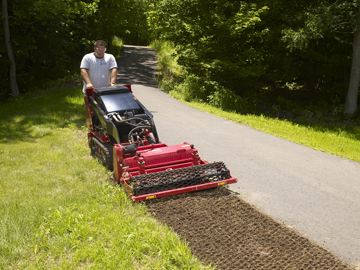

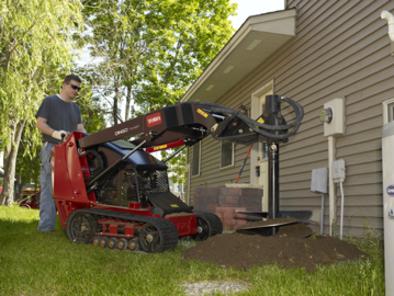

Toro Dingo TX 525 Narrow Track Features:
Engine Kubota 25 hp D902E3B diesel engine
Air Filter Two-Stage, heavy duty, remote
Cooling System Liquid Cooled
Fuel Tank 6 gallons
Oil Capacity 3.84 quarts
Hydraulic System
Pressure 3000 psi
Flow 13.8 gpm auxillary, 6 gpm loader arm, 16.9 gpm traction for each traction pump
Reservoir Capacity 10.5 gallons
Auxillary Horsepower 24 horsepower
Track
Standard Endless Kevlar reinforced rubber, 96.6" x 5.9", single internal tooth drive
Track Drive
Standard Sprocket drive, 10 road wheels per side, cast iron track guide
Traction Dual hydrostatic pump
Toro Dingo TX 525 Narrow Track Specifications:
Dimensions
Track Width 5.9"
(A) Wheelbase 31.2"
(B) Ground Clearance 4.6"
(C) Overall Length 92" with bucket
70.7" with out bucket
Overall Width 33.7"
(D) Overall Height 46.1"
(E) Maximum Operating Height 90.1"
(F) Hinge Pin Height 65.8"
(G) Dump Height 46.1"
(H) Dump Angle 38 degrees
(I) Reach 21.8" fully raised
Ground Speed 0-4.5 mph forward
0-2 mph reverse
Tip Capacity 1580 lbs
SAE J818 Rating 50% tip capacity 790 lbs
SAE J818 Rating 35% tip capacity 553 lbs
Weight with standard bucket 2030 lbs
Wieght with out standard bucket 1904 lbs
Ground Pressure 5.2 psi
use diagram above and match to the corresponding letter
