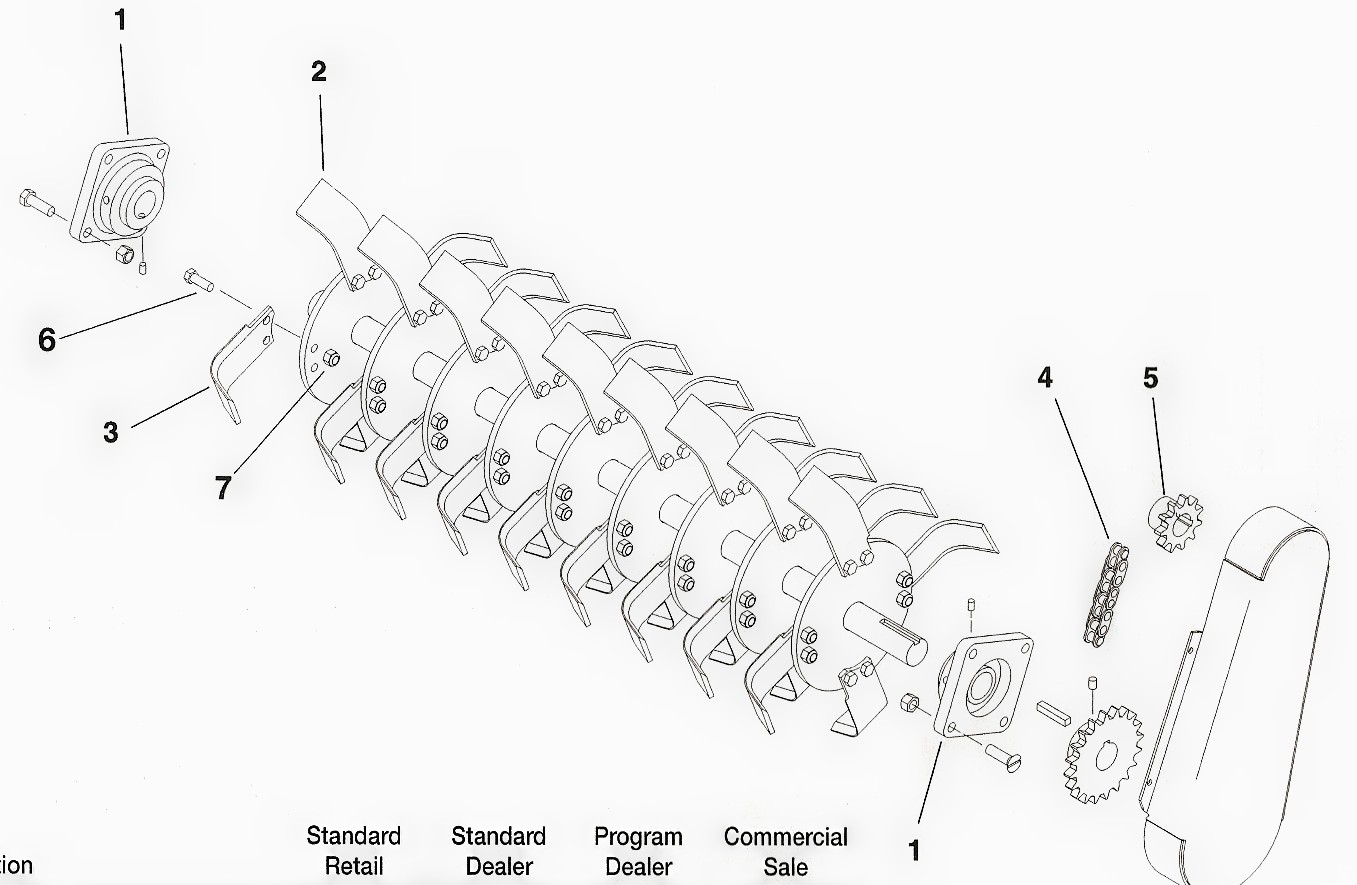

Toro Dingo Tiller Attachment Parts
Toro Dingo Tiller Attachment Parts Diagram
Toro Dingo Tiller Attachment Parts DiagramToro Dingo Tiller Attachment Parts Diagram
Toro Dingo Tiller Attachment Parts DiagramToro Dingo Tiller Attachment Parts DiagramToro Dingo Tiller Attachment Parts Diagram
Toro Dingo Tiller Attachment Parts DiagramToro Dingo Tiller Attachment Parts DiagramToro Dingo Tiller Attachment Parts DiagramToro Dingo Tiller Attachment Parts Diagram
Toro Dingo Tiller Attachment Parts DiagramToro Dingo Tiller Attachment Parts DiagramToro Dingo Tiller Attachment Parts Diagram
Toro Dingo Tiller Attachment Parts DiagramToro Dingo Tiller Attachment Parts Diagram
Toro Dingo Tiller Attachment Parts Diagram
Toro Dingo Tiller Attachment Parts DiagramToro Dingo Tiller Attachment Parts Diagram
  Reference
  Number.

1

2

3

4
4

5

6

7

Part
Number.

99-9979

104-2044

104-2043

98-9088
98-9089

98-9085

324-29

3296-48

Part
Description.

Bearing Assembly

Left Hand Tine

Right Hand Tine

Roller Chain
Chain Roller Connecting Link

11 Tooth Sprocket

Bolt HH

Nut

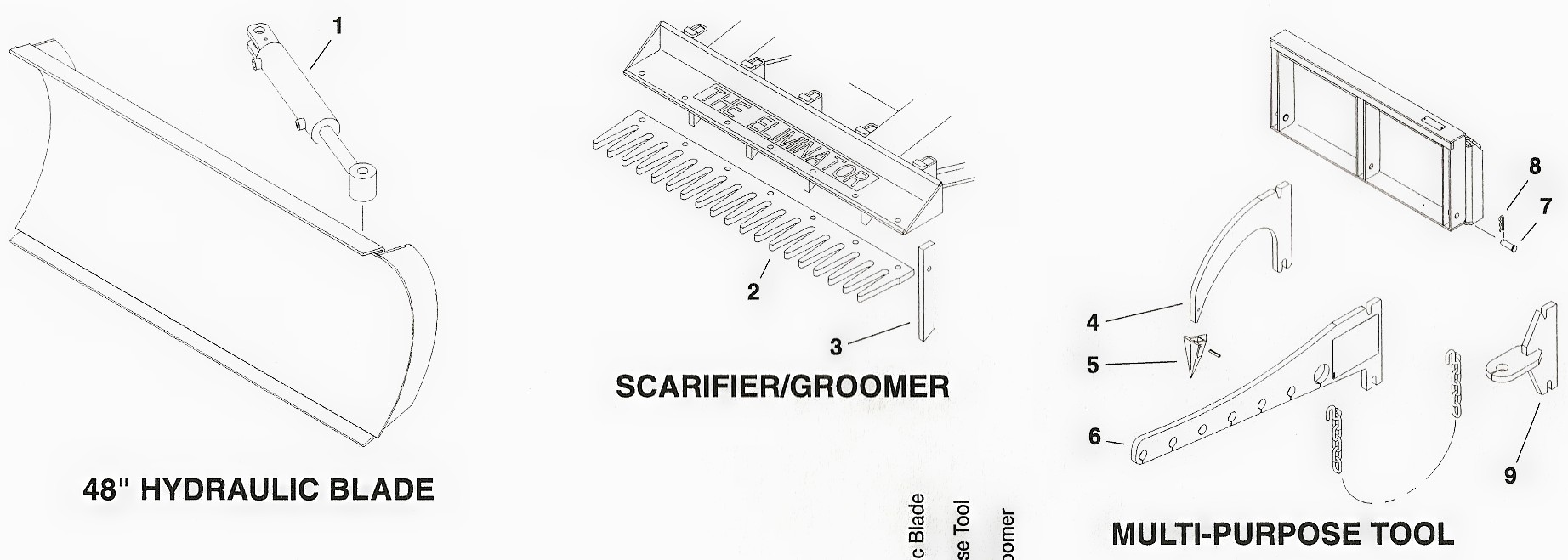

Toro Dingo Multipurpose Tool and Hydraulic Blade Attachment Parts
Toro Dingo Hydraulic Blade Attachment and Multipurpose Tool Parts
Toro Dingo Hydraulic Blade and Multipurpose Tool Attachment PartsToro Dingo Hydraulic Blade and Multipurpose Tool Attachment Parts
Toro Dingo Hydraulic Blade and Multipurpose Tool Attachment PartsToro Dingo Hydraulic Blade and Multipurpose Tool Attachment PartsToro Dingo Hydraulic Blade and Multipurpose Tool Attachment Parts
Toro Dingo Hydraulic Blade and Multipurpose Tool Attachment PartsToro Dingo Hydraulic Blade and Multipurpose Tool Attachment PartsToro Dingo Hydraulic Blade and Multipurpose Tool Attachment PartsToro Dingo Hydraulic Blade and Multipurpose Tool Attachment Parts
Toro Dingo Hydraulic Blade and Multipurpose Tool Attachment PartsToro Dingo Hydraulic Blade and Multipurpose Tool Attachment PartsToro Dingo Hydraulic Blade and Multipurpose Tool Attachment Parts
Toro Dingo Hydraulic Blade and Multipurpose Tool Attachment PartsToro Dingo Hydraulic Blade and Multipurpose Tool Attachment Parts
Toro Dingo Hydraulic Blade and Multipurpose Tool Attachment Parts
Toro Dingo Hydraulic Blade and Multipurpose Tool Attachment PartsToro Dingo Hydraulic Blade and Multipurpose Tool Attachment Parts
  Reference
  Number.

1
1

2

3

4

5

6

7

8

9

Part
Number.

98-9942
99-1352

98-9056

98-9057

104-1999

99-5147

98-4889

98-4897

3290-355

283-68

Part
Description.

Hydraulic Cylinder
Seal Kit (for 98-9942)

Leveling Comb

Tooth

Tine Plate

Spear Point

Jib

Tow Bar Assembly

Hair Pin

Clevis Pin


           Toro Dingo attachment model this part is used on

Used on:   22414   48" Hydraulic Blade Attachment
Used on:   22414   48" Hydraulic Blade Attachment

Used on:   22443   Scarafier / Groomer Attachment

Used on:   22443   Scarafier / Groomer Attachment

Used on:   22423   Multi-Purpose Tool Attachment

Used on:   22423   Multi-Purpose Tool Attachment

Used on:   22423   Multi-Purpose Tool Attachment

Used on:   22423   Multi-Purpose Tool Attachment

Used on:   22423   Multi-Purpose Tool Attachment

Used on:   22423   Multi-Purpose Tool Attachment

We Can Ship Parts to You
Please Call Everett to Order Parts or for More Information
