Astec and Case Maxi Sneaker Parts
Toro has purchased certain assets from the Astec Underground Equipment Company. We sell parts for Astec and Case Maxi Sneakers and can direct ship them right to you. Some of these parts include (but are not limited to) bearings, mufflers, trencher booms and chains, rims, etc.
We carry parts for the Astec Maxi Sneaker (aka Case) including:
Astec and Case Maxi Sneaker
series A
series B
series C
series D
series E
We Can Get Any Astec or Case Maxi Sneaker Part and Ship Them To You. Please Call Everett to Order Parts or for More Information
703 919 1379
E&S Equipment, LLC
6799 Kennedy Road Suite E
Warrenton VA 20187
(703) 919-1379
www.esequipmentllc.com
Reference Part
Number Number
1 H564849
1A H26005
2 H33563
3 H747139
4 H33837
5 H232645
13 H56713
16 H33563
17 H747139
No sales tax charged on maxi sneaker parts shipped outside the state of Virginia
Call 703 919 1379 to get Maxi Sneaker parts shipped to you!
Case Maxi Sneaker C Parts Diagram (Also Astec)
 | ||||||
Part
Description
Boom/W, 36 Inch
Lug (digging chain tightener)
Sprocket / Boom end
Bearing
Retaining Ring
Bushing
Spring
Sprocket
Bearing
Case Maxi Sneaker Trencher Boom Diagram (also Astec)
Part
Description
Trencher Boom Assembly 36 inch
Trencher Boom 36 inch
Adjustment Piston
Mount Shaft Idler
Bearing
Idler Wheel Boom End
Washer
Washer
Reference Part
Number Number
* 103938
1 103555
2 H563254
5 107321
6 H747444
7 101805
8 100700
15 H117598
* Many Different Style Trencher Chains are Available
| ||||||
Case and Astec Maxi Sneaker Steering Control and Boom Lift Valve
pn H674732 or pn 407213A1
Case and Astec Maxi Sneaker Hydraulic Wheel Drive Motor
pn H674235 or pn 239920A2
Case and Astec Maxi Sneaker Plow Hydraulic Lift Cylinder
pn H674455
Case and Astec Maxi Sneaker Hydra Borer Universal Joint
Case and Astec Maxi Sneaker Series C Muffler
pn 110891A1 or pn110891A2

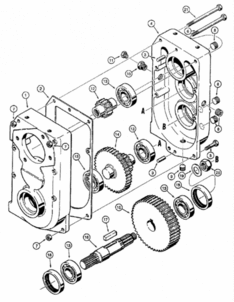

Case and Astec Maxi Sneaker Series C Transmission
pn H660126 or pn 104951
