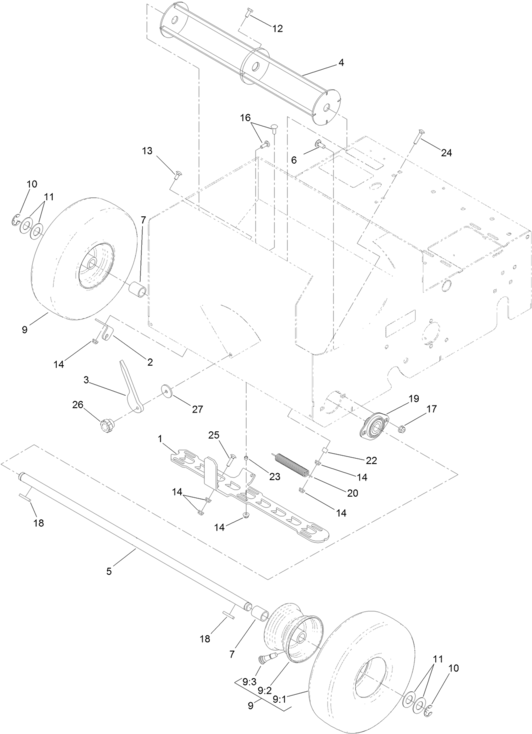

Toro Slit Seeder Parts Diagram
Toro Slit and Mechanical Seeder Parts
Reference Part Description and
Number Number Quantity
1 121-1905-03 Gate Seed x1
2 121-1907 Bracket Seed Flow x1
3 121-1912 Gauge Seed Flow x1
4 125-3782-03 Mixer x1
5 121-1929 Front Axle x1
6 3230-23 Screw x4
7 105-3838 Spacer x2
9 120-3550 Wheel ASM x2
9:1 121-6081 Tire x1
9:2 121-6082 Wheel Rim x1
9:3 5108 Valve x1
10 32151-48 E-Ring x2
11 3256-39 Flat Washer x4
12 321-3 Screw x1
13 3229-11 Screw x2
14 104-7201 Nut x18
16 1-807512 Carriage Bolt x7
17 104-8300 Nut Flange x4
18 92-0049 Key Square x2
19 121-1961 Bearing x2
20 121-2016 Spring Extension x2
22 66-8010 Space Hub Impellar x2
23 121-2015 Spacer x6
24 3229-3 Screw x2
25 32105-31 Truss Screw x3
26 233-67 Chute Knob x1
27 103995 Washer x1
Call 703 919 1379 to get Toro Seeder parts shipped to you!
 | ||||||

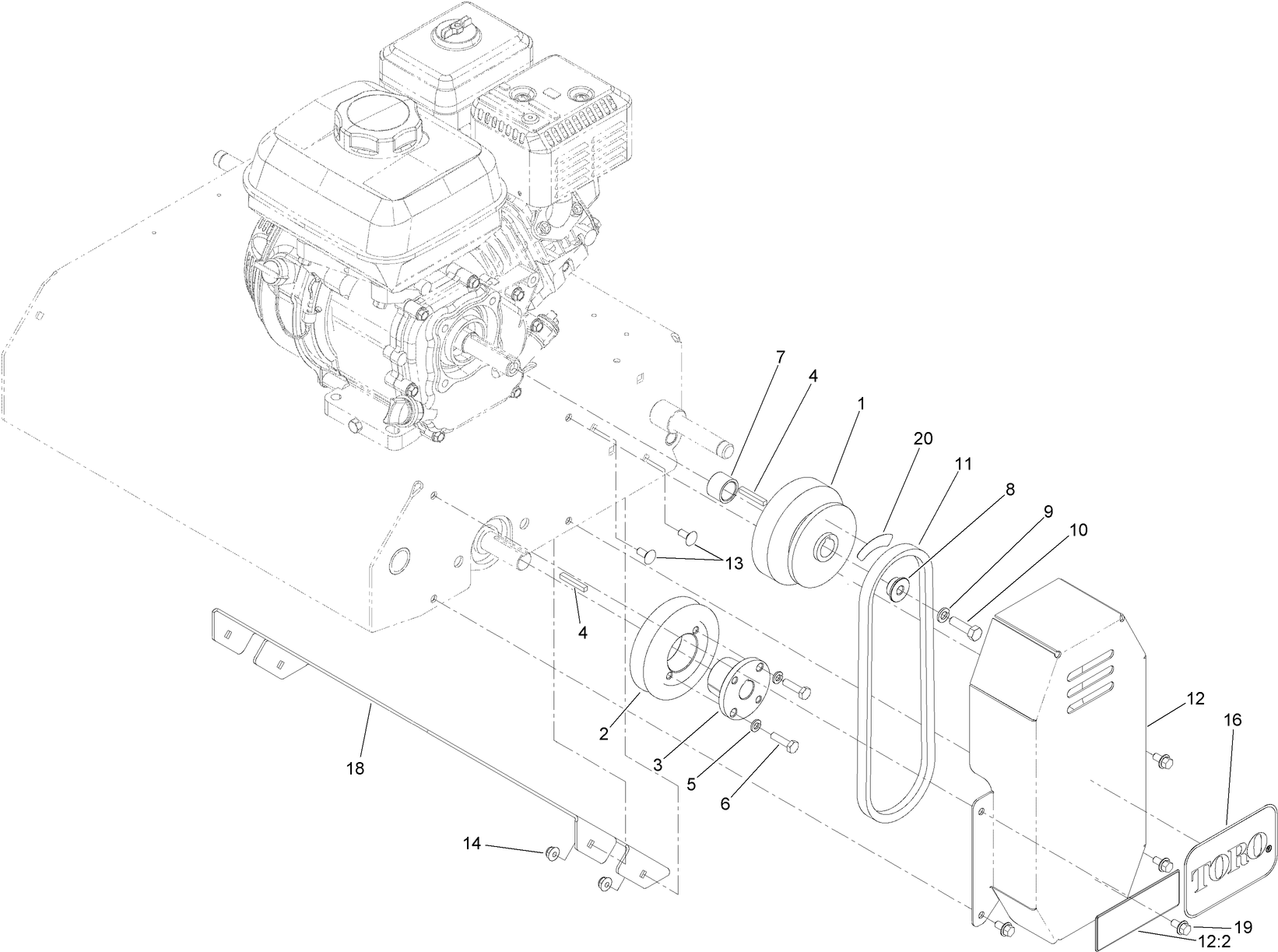

Reference Part Description
Number Number and Quantity
1 120-1215 Centrifugal Clutch x1
2 121-2019 Sheave Taper Lock x1
3 121-2022 Bushing Taper Lock x1
4 92-2649 Key Square x2
5 3253-3 Washer Lock x2
6 321-6 Screw x2
7 121-7731 Spacer x1
8 121-7732 Bushing x1
9 3253-4 Washer Lock x1
10 3210-6 Screw x1
11 53-4650 V Belt x1
12 125-3827 Belt Guard ASM x1
12:2 93-7321 Danger Decal x1
13 3229-11 Carriage Screw x4
14 104-7201 Nut x4
16 67-1300 Decal x1
18 121-6235-01 Baffle Deflector x1
19 3234-13 Screw x4
20 125-3897 Decal Warning x1
Toro Mechanical Seeder Parts Diagram
| ||||||
We Can Get Any Toro Seeder Part and Ship Them to You
Please Call Everett to Order Parts or for More Information
703 919 1379
